Key Features

4500mAh Battery
Supports up to 10 Wi-Fi enabled devices
Portable size so you can take with you anywhere
Supports Wi-Fi speeds up to 867Mbps with dual 5G/4G compatibility for uninterrupted internet access
Unlocked device, can work with any SIM card.

Overview

Connectivity
The ZTE U30 Air 5G Router delivers seamless, high-speed connectivity, making it an ideal choice for homes and businesses alike. Equipped with advanced 5G technology, it provides ultra-fast internet speeds with low latency, ensuring a stable and reliable connection for multiple devices.

Design
The ZTE U30 Air 5G Router combines sleek design with practicality, making it a stylish addition to any home or office. Its compact and lightweight form factor ensures it fits seamlessly into any space without being obtrusive. .

Battery Life
Equipped with a powerful 4500mAh battery, the ZTE U30 Air ensures up to 10 hours of continuous usage, keeping you connected throughout your journey.

Unlocked for Ultimate Flexibility
Enjoy the freedom to use any SIM card with the unlocked ZTE U30 Air. As a bonus, it comes with a complimentary WorldSIM Data SIM card, providing low-cost data in 188 countries. You can opt for prepaid credit or international data bundles at your convenience.

Specifications

Cellular network	3GPP Release	3GPP Release15	Yes
	Network	5G SA/NSA/LTE/3G	Yes
	Modulation	Sub6G DL: 256QAM UL: 256QAM LTE DL:256QAM UL: 64QAM	Yes
	Bandwidth	Sub6G: 40MHz, 50MHz, 60MHz, 80MHz, 90MHz,100MHz	Yes
	Network Slicling		No
	Transmitter power	25dBm(inerfull) for n78, 23dBm for other bands	Yes	n78 support PC2
	5G Sub6 Bands	n1/n3/n7/n8/n20/n28/n40/n77/n78	Yes
	5G mmWave Bands		No
	4G Bands	B1/B2/B3/B4/B7/B8/B20/B28/B38/	Yes
	3G Bands	B1/2/4/5/8	Yes
	2G Bands		No
	MIMO for wireless	5G Sub6:n1,n3,n7,n40,n77,n78 supports 4*4MIMO； LTE: B1,B3,B7,B38supports 4MIMO	Yes
	Default antenna	Internal antenna for all bands	Yes
	Antenna Gain	700-960MHz: 0.6- 1.2dBi 1400-2700MHz: 0.3-1.9dBi 3300~4200MHz: 0.5- 1.1dbi	Yes
	Bands supported by External Antenna Ports		No
	Theoretical Max Rate	5G ENDC LTE FDD + Sub6G DL 1.83Gb/s UL 155Mb/s	Yes	LTE FDD + Sub6G DL：LTE 4layer/256QAM + NR 100M /256QAM +75% DL duty cycle; UL：LTE 2CA/64QAM + NR 100M/256QAM +25% UL duty cycle;
		5G SA 5G Sub6G -TDD DL 1.43 Gb/s UL 80Mb/s	Yes	DL peak rates requires: 100MHz + 256QAM + 4MIMO 75% DL duty cycle; UL peak rates requires: 100MHz + 256QAM + 1MIMO 25% duty cycle.
		5G mmWave DL： UL：	No
		LTE LTE FDD (DL Category15, UL Category13): DL 800Mb/s UL 75Mb/s LTE TDD DL 280Mb/s UL 30Mb/s	Yes	FDD peak rates require DL: 256QAM + 3CA （8 layers）; UL: 64QAM + no CA TDD peak rates require DL: 256QAM + 2CA （4 layers）; UL: 64QAM + 2CA intra-bands. And TDD frame config 2 (DL/UL ratio 7:2)
		UMTS： WCDMA CS: UL 64kbps/DL 64kbps WCDMA PS: UL 384kbps/DL 384kbps HSDPA: DL 14.4Mb/s(Category 10) DL 21Mb/s(Category 14) DL 42Mb/s(Category 24) HSUPA: UL 5.76Mb/s(Category 6) UL 11.5Mb/s(Category 7)	Yes
WiFi network	Standard	WiFi5, 802.11b/g/n/a/ac	Yes
	Band & MIMO	2.4G or 5G MIMO:5GHz 22 2.4GHz 22	Yes
	Speed	2.4GHz MIMO 22 20M：>140Mbps(UDP) 5GHz MIMO 22 80M：>650Mbps(UDP)	Yes
	Bandwidth	2.4G: 20M 5G: 80M	Yes
	Modulation	Up to 256QAM	Yes
	Default antenna	Internal antenna for all bands	Yes
	Antenna Gain	2.4GHz 1.37dbi；5GHz: 2.34dbi	Yes
	Access number	up to 10	Yes
Interface	RJ45 interface		No
	RJ11 interface		No
	USB interface	1 TypeC USB 3.0	Yes
	External Antenna Ports		No
	USIM/SIM slot	1*4FF, Standard 6PIN SIM card interface for 3V/1.8V SIM card	Yes
	Button	Power button	Yes
		Reset button	Yes
		WiFi 2.4G/5G Switch button	Yes
		WPS button	No
	LED	Power/Battery: White/Blue/Red	Yes
		WiFi: White/Blue	Yes
		Network: White/Blue/Red	Yes
		Singal Strength	No
		RJ45 port's LED	No
	Screen	Type: TFT Size: 2.44 inch Resolution: 128*128	No
	Battery	4500mAh Li-ion battery, Removable	Yes
Power consumption	Maximum power consumption	TBD	Yes
Environment Specifications	Ingress Protection		No
	Operating temperature	0 to 35° C	Yes
	Storage temperature	-20 to 45° C	Yes
	Humidity	5% to 95%	Yes
Certification	Certification	CE, WEEE, ROHS, REACH, WiFi	Yes
Package contents	AC Adapter		No
	USB Cable		Yes
	Quick Start Guide		Yes
	User Manuel		Optional
	Warranty card		Optional
	EAN		Optional
	TAC		Optional
Software Feature	Device Mode	Automatically mode (wireless or wire auto switch)	No
		Daul WAN	No
		Hybird mode (wireless and wired are used at same time)	No
		Wireless mode	Yes
		Bridge mode	No
		Cable Broadband Mode	No
	IP networking	IPv4/IPv6 dual stack (NDP IPv6)	Yes
		DHCP server	Yes
		VPN pass-through(L2TP/PPTP/IPSec)	No
		VPN L2TP	No
		VPN PPTP	No
		VPN IPSec	No
		VPN GRE	No
		NAT/NAPT	Yes
		Sip ALG	No
		Multiple APNs	Optional
	Firewall	Port Forwarding	No
		Port Filtering	No
		Port Mapping	No
		Domain Filtering	No
		Upnp	No
		DMZ	No
		Remote Access/Ping switch	No
		MAC address filtering	No
	WiFi	WiFi Switch	Yes
		Bandsteering	No
		Security mode: WPA2-PSK/WPA3-PSK, WPA2-PSK, WPA3-PSK	Yes
		WiFi Broadcast	Yes
		WiFi Isolation	No
		Auto channel selection	Yes
		WPS	No
		EasyMesh	No
		GuestSSID support	No
		WiFi Sleep Mode	Yes
	Voice	VoNR	No
		VoLTE	No
		CSFB	No
		VoIP	No
	Device Managemnt	Connected device Management	Yes
		SMS	Yes
		PIN/PUK management	Yes
		APN management	Yes
		Lock Frequency/Lock Cell	Yes
		TR069 with TR181 data model default	No
		Upgrade: FOTA	Yes
		ZTE Smartlife APP	Yes
		Multiple languages: Arabic, Chinese, Danish, English, Finnish, French, German, Italian, Norwegian, Portuguese, Portuguese (Brazil), Russian, Spanish, Spanish (Latin America), Swede	Yes
		Device can FOTA/TR069/remotely access on bridge mode	No
	Special Feature	Green Mode: user can set the device to save the power	No
		Preferred Position：Can help user to find a good position	No
		NFC：Andriod phone touch can access the Router WiFi	Yes	support NFC Tag
		Device Diagnosis will list all device running key status and give fix solution	Yes
		PC/Phone/PAD WebUI management self-adaptation	Yes
		OpenWrt	No

Wi-Fi Dongles & Mi-Fi

Huawei Mobile WiFi - E5783-230 - Black

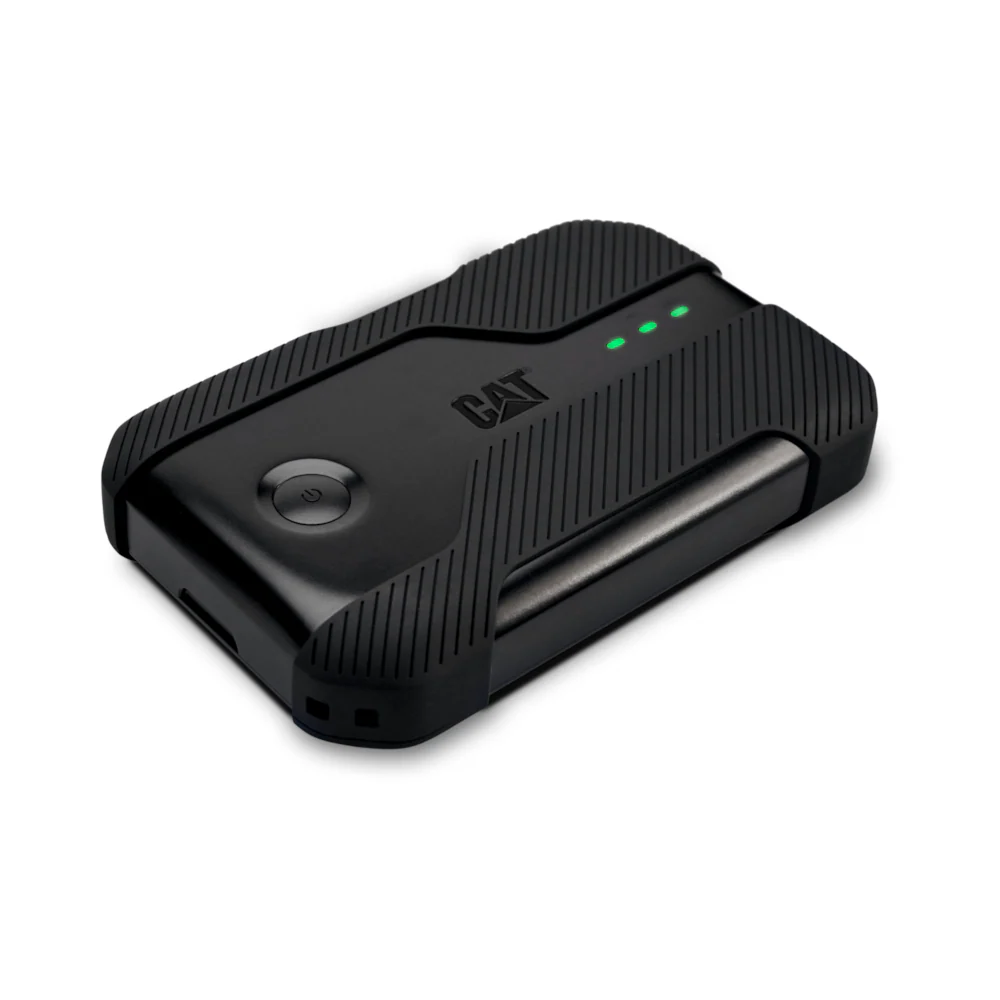

CAT Q10 Rugged Internet Hotspot
